Max passenger capacity
Up to 48 passengers
Exterior length
Varies by wheelbase
Exterior width
96"
Overall height
121" - 128"
Interior width
90 3/4"
Interior height
77"
Wheelbase
169"/ 189"/ 217"/ 238"/ 252"/ 273"/ 280"
Aisle Width
Varies by floorplan
Skirt Length
16 1/4", 19 3/4", 25 3/4"
Front Overhang
45" with standard steel bumper
Rear Overhang
Varies by body length/wheelbase
Entrance door
27" Wide x 78" High/double electric outward opening
Rear Door
37" Wide x 52" High
Exterior Mirrors
Manual, optional heated remote operated
Flooring
5/8" Plywood subflooring optional
Tire Size
11R22.5 (G) all-position radials
GVWR
Up to 33,000 lbs
Engine
Cummins B6.7 200-260 hp
Cummins V5.0 220 hp
Transmission
Allison® 2500 -5 speed automatic;
Allison® 3000 -5 speed automatic
Allison® 3000 -5 speed automatic;
Eaton® Procision™ -7 speed automatic
Fuel Tank
Standard 60-gallon, optional 100-gallon located between frame rails in rear overhang; 45-gallon for 169" Wheelbase
Engine
Ford® 6.8L with ROUSH CleanTech Liquid Propane Autogas Fuel System, 320 hp
Transmission
Ford® 6R140 6 speed automatic
Fuel Tank
Standard (usable) 67-gallon, optional 93-gallon located between frame rails in rear overhang, 47-gallon for 169" wheelbase
Engine
Ford® three-valve 6.8L V10 Gasoline, 320 hp
Transmission
Ford® 6R140 6 speed automatic
Fuel Tank
Standard 60-gallon, optional 100-gallon located between frame rails in rear overhang
SPECIAL NEEDS
The CT-Series delivers exceptional safety and stability, making this bus an excellent choice for your special needs applications. This bus is ready to be equipped with a variety of options to suit the needs of any passenger.

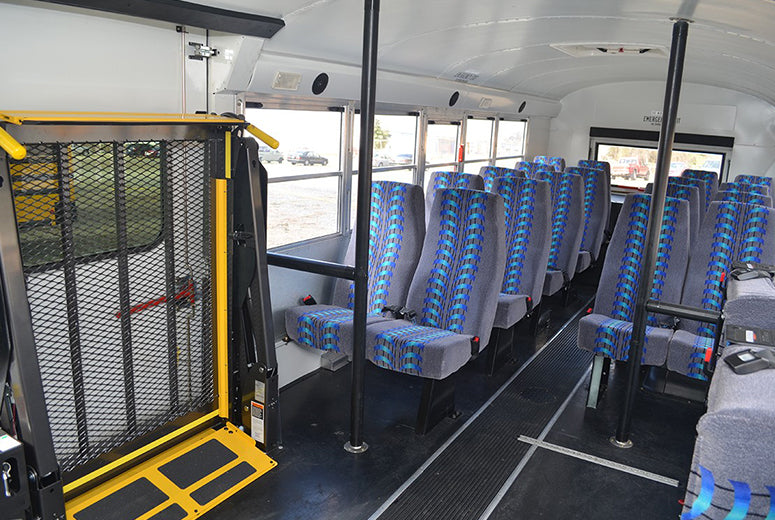

ADA-COMPLIANT LIFTS
Smooth operating, ADA-compliant wheelchair lifts from suppliers including Braun and Ricon are available for any of Blue Bird’s buses.
KNEELING SYSTEM
Our optional kneeling system allows the bus to lower the front passenger entry area for easier entry and exiting of passengers.

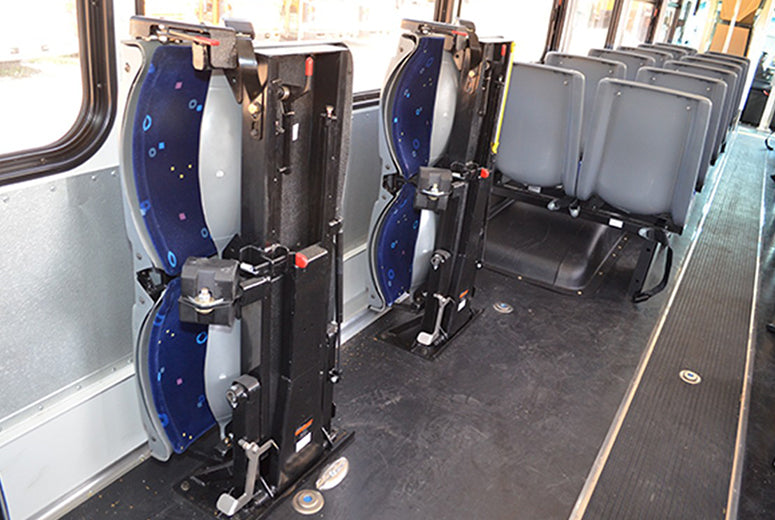

WHEELCHAIR SECUREMENT SYSTEMS
Our Slide N’Click and floor pocket anchorages offer safe and secure transport for special needs passengers.
POPULAR OPTIONS
- Multiple Paint Colors Available

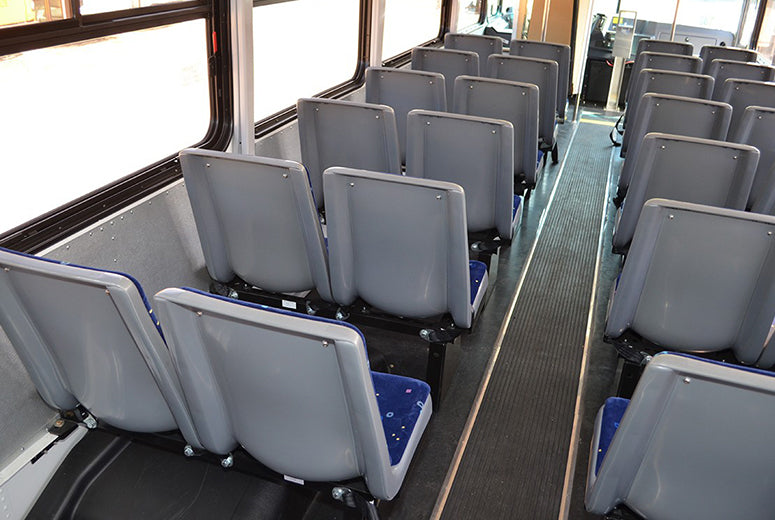

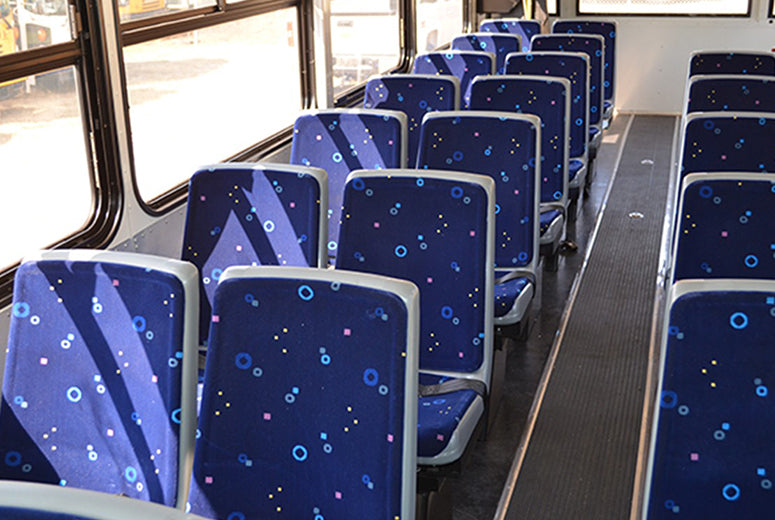

- Advanced Seating Options
- Destination Sign
- Backup Camera in Rearview Mirror

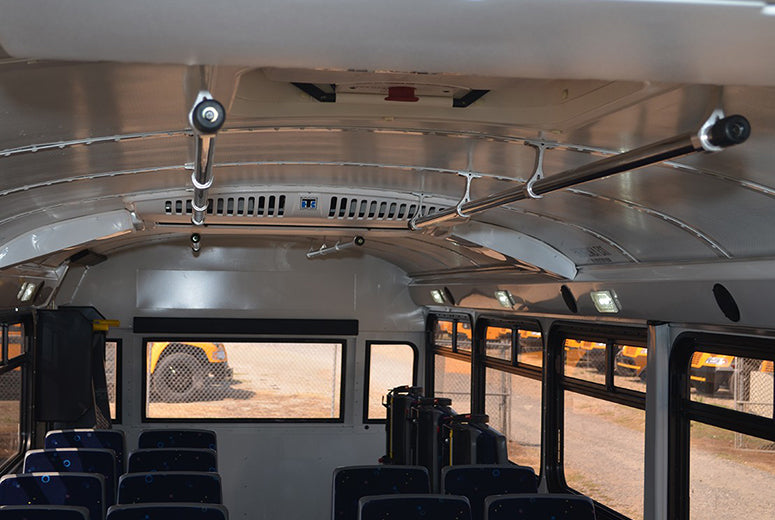

- Overhead Racks

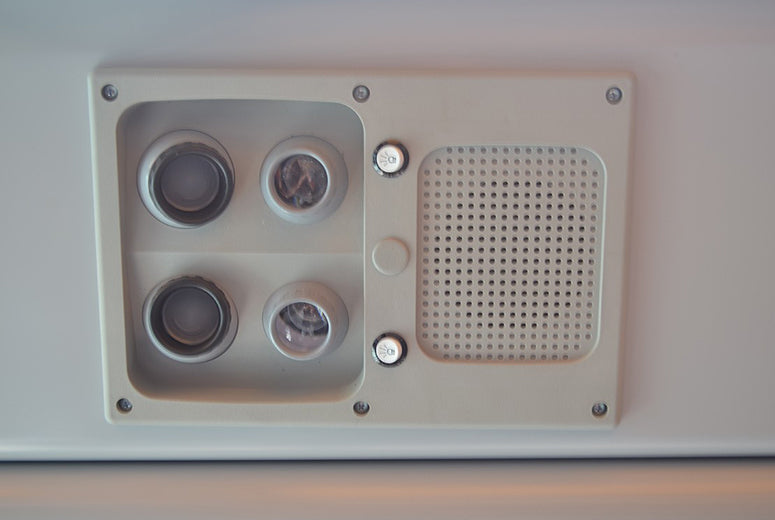

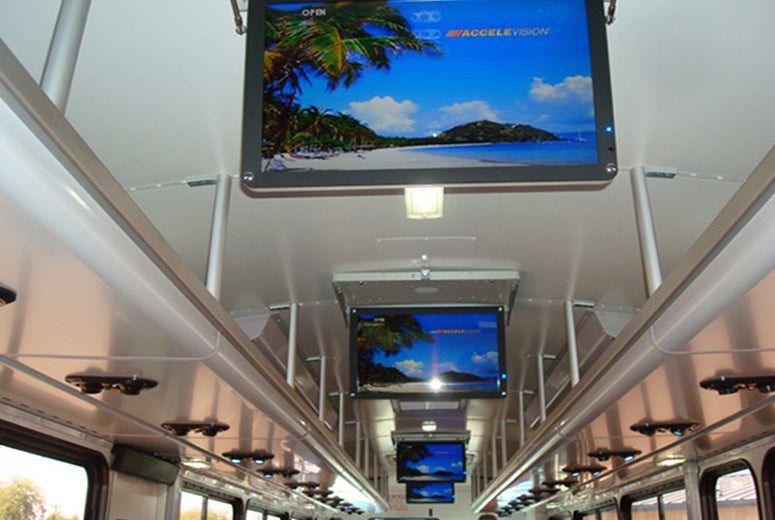

- Electronic Options Including:Wi-FiReading LightsSoft Touch SensorsVideo SystemSurveillance CamerasAnd much more!
PROPANE
The Blue Bird CX2 Propane features the proven Ford/ROUSH CleanTech powertrain. Blue Bird has produced over 10,000 propane buses, making this an easy, reliable choice for your alternative fuel needs.
PROVEN TECHNOLOGY
The performance of the engine relies on the transmission it works with. This is why Blue Bird has chosen to pair the Ford 6.8L engine with the proven 6R140 Ford transmission. This transmission was designed for the Ford 6.8L engine in order to deliver the best ratio of power and fuel economy.
OVER 57 MILLION MILES DRIVEN
Blue Bird’s propane-powered buses have traveled over 57,000,000 miles – enough miles to go around the world over 2,300 times! Our buses can go the distance, and are built to last through the rigorous years of passenger transport they endure.
THE MOST OPTIONS AVAILABLE
The Blue Bird CX2 Propane is available in all wheelbases, from 169” to 280”. We also offer three tanks sizes to suit your needs: 50 gallons for short wheelbases, 70-gallon standard, and 100-gallon extended range.
INFRASTRUCTURE
Infrastructure is one of the major obstacles when it comes to going alt-fuels. Fortunately, propane gives you many options for infrastructure, and how to make it affordable. Wet-fueling (on-site fueling) options are available, as well as traditional infrastructure needs with on-site tanks and fueling stations. Many propane providers will work with your company to roll-in the cost of the infrastructure with your price-per-gallon of fuel, among other financing options that make it very feasible to add propane to your existing fleet.
