Max passenger capacity
20/24
Number of rows
3/4
Exterior length overall
243
Exterior width overall
96
Exterior height overall
110
Interior floor length
135
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 77
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
30
Number of rows
5
Exterior length overall
289
Exterior width overall
96
Exterior height overall
112
Interior floor length
177.25
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 77
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
24
Number of rows
5
Exterior length overall
289
Exterior width overall
96
Exterior height overall
118
Interior floor length
177.25
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 82
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
22
Number of rows
4
Exterior length overall
257
Exterior width overall
96
Exterior height overall
111
Interior floor length
151.25
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 77
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
30
Number of rows
5
Exterior length overall
283
Exterior width overall
96
Exterior height overall
113
Interior floor length
177.25
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 77
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
24
Number of rows
5
Exterior length overall
283
Exterior width overall
96
Exterior height overall
118
Interior floor length
177.25
Interior width at hip
93
Interior height at center line
76
Entrance door
32 x 77
Side windows
35 x 30
Rear bumper
3/16 x 9.5 with 12 wrap around
Engine
6.0 L gas
Transmission
6-Speed automatic heavy-duty overdrive
GVWR
12,300 lbs / 14,200 lbs
Fuel tank
33 gallons
Brakes
4-wheel anti-lock, 4-wheel disc
Tires
LT225/75R16E all-season, blackwall
Alternator
200 amp.
Battery
600 & 770 CCA
Wheelbase
Chevy/GMC(100/200/200C)
139"/159"/159"
Wheelbase(100/200/200C)
138"/158"/158"
Engine
6.2 L gas / 6.8 L gas
Transmission
6-Speed overdrive
GVWR Ford(100)
11,500 lbs
GVWR(200/200C)
12,500 lbs / 14,000 lbs / 14,500 lbs
Fuel tank(200/200C)
40 gallons
Brakes
4-wheel disc
Tires
LT225/75RX16E BSW all-season
Alternator
150 amp. HD / 155 amp. HD
Battery
72 amp.
Here are a few of the features that make it different:
- Full length stainless steel hinge rear door: No corrosion, savings on maintenance and long term value.
- Recessed lighting at the front and back: Savings on potential repair costs due to water infiltration, increases gasket life expectancy.
- Completely sealed floor: Eliminates the use of coving and aisle trim, significantly reduces the risk of moisture and corrosion, sub-floor undercoating, sound deadening, savings on maintenance and long term value.
- Double action energy absorbing body mounting blocks: Eliminates the need for periodic tightening of body bolts, absorbs road vibrations, offers extended body durability and longevity.
- One piece roof bow: Insulated, limiting condensation and risk of corrosion, solidity and low noise transferred. By combining top safety features with the durable components and a 5-year limited body warranty, we are confident the Micro Bird G5 is not only your best investment but also your best choice.
Features & Benefits
BUILT TO LAST STRUCTURE
- One-piece galvanized steel roof bows enhance safety and roll over protection.
- The full-length, heavy gauge, galvanized steel side impact barriers with reinforced seat rail offer superior protection from side impact intrusions.
- Aluminum Side Body panels for longevity and low repair costs
ENHANCED PASSENGER SAFETY
- Heavy gauge, galvanized steel side impact barriers that incorporate the seat rail into the design for extra strength.
- Reinforced rear door and buffer zone for rear impact barrier
SUPERIOR SIDE IMPACT PROTECTION
- Offered by the use of heavy-gauge steel side impact barriers that incorporate the seat rail into the design for extra strength and enhanced passenger safety.
REDUCED OPERATING MAINTENANCE & OPERATING COSTS
- Gravel sheild added body protection and increased vehicle longevity
- Standard LED lights
Double action energy absorbing body mounting blocks:
- Absorb road vibration
- Reduce noise transfer to the interior cabin
- Provide smoother passenger ride
- Prevent frame collapse
- Eliminate the need for periodic tightening of body bolts

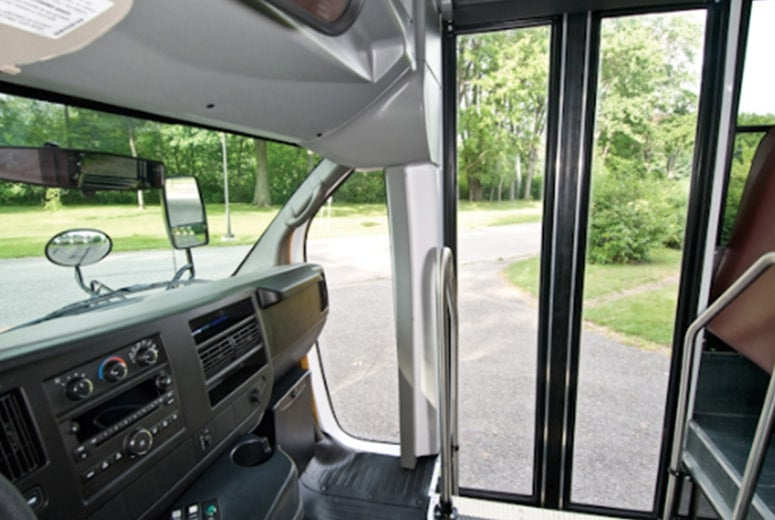

MAXIMUM VISIBILITY
- Provides a fully-glassed entrance door and unobstructed “More-View” window
- Standard 32″ electric double-opening door.
SUPERIOR INSULATION AND QUIETNESS
- Fiberglass insulation throughout
- Insulated hat shaped roof bows
- Reduce noise transfer into passenger compartment
- Prevent condensation and corrosion
REDUCED OPERATING & MAINTENANCE COSTS
- Standard LED exterior lights
INCREASED PASSENGER COMFORT
Wide Body:
- Creates wider aisle for increased safety
- Offers more room for passengers
- 93″ interior width at the hip
BETTER PROTECTION AGAINST THE ELEMENT
Completely sealed floor:
- Ensures that all exterior elements, including dust, moisture and noise, remain outside the passenger compartment
- Use of high quality exterior grade plywood
- screwed on galvanized steel or aluminum subfloor
- Sound deadening undercoating is applied to metal subfloor over and above prior to plywood installation
Special Needs
ADA-COMPLIANT
- Smooth operating, ADA-compliant wheelchair lifts from suppliers including Braun and Ricon are available for any of Micro Bird’s buses.
WHEELCHAIR SECUREMENT SYSTEMS
- Our recessed wheelchair tracks, Slide N’Click or floor pocket anchorages offer safe and secure transport for special needs passengers.
