Max passenger capacity
19
Number of rows
4
Exterior length overall
233
Exterior width overall
86
Exterior height overall
100 / 106
Interior floor length
131
Interior width at hip
82
Interior height at center line
66 / 74
Entrance door
24 x 70 / 24 x 77
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
24
Number of rows
5
Exterior length overall
253
Exterior width overall
86
Exterior height overall
100 / 106
Interior floor length
156
Interior width at hip
82
Interior height at center line
66 / 74
Entrance door
24 x 70 / 24 x 77
Rear bumper
3/16 x 9.5 with 12 wrap around
Max passenger capacity
25
Number of rows
5
Exterior length overall
274
Exterior width overall
86
Exterior height overall
106
Interior floor length
176
Interior width at hip
82
Interior height at center line
74
Entrance door
24 x 77
Rear bumper
3/16 x 9.5 with 12 wrap around
Engine (4N/5N/6N/6R)
6.0L gas
Wheelbase (4N)
139" SRW
Wheelbase (5N/6N/6R)
156" SRW
Transmission (4N/5N/6N/6R)
6-speed Automatic Overdrive SelectShift
GVWR (4N)
9,000 lbs
GVWR (5N/6N/6R)
9,500 lbs (SRW) / 10,360 lbs (DRW)
Fuel Tank (4N/5N/6N/6R)
25 gallons
Brakes (4N/5N/6N/6R)
4-wheel anti-lock disc brakes
Tires (4N/5N/6N/6R)
235/65R16 (SRW) / 195/75R16 (DRW)
Alternator (4N/5N/6N/6R)
200 amp. (gas) / 210 amp. (diesel)
Battery (4N/5N/6N/6R)
Dual heavy-duty batteries, 760 CCA each

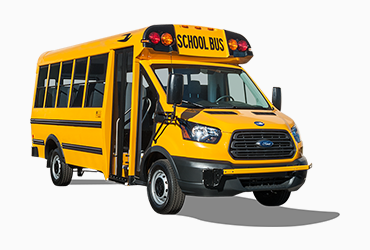

The T-Series is maintenance-friendly with easily accessible engine, wiring and electrical compartments. Time saved on maintenance tasks means lower costs for school districts.
Choose from either a fuel-efficient 3.7L gasoline or 3.2L diesel engine. Using one of these readily available fuels and standard gasoline and diesel formats makes it easy to refill and to find qualified mechanics. In addition, the T-Series’ aerodynamic design ensures greater fuel economy.
You can count on our high-quality vehicles for the long run. All Micro Bird bus bodies come with a 5-year limited warranty. All these factors combine to further reduce TCO for T-Series buses.
