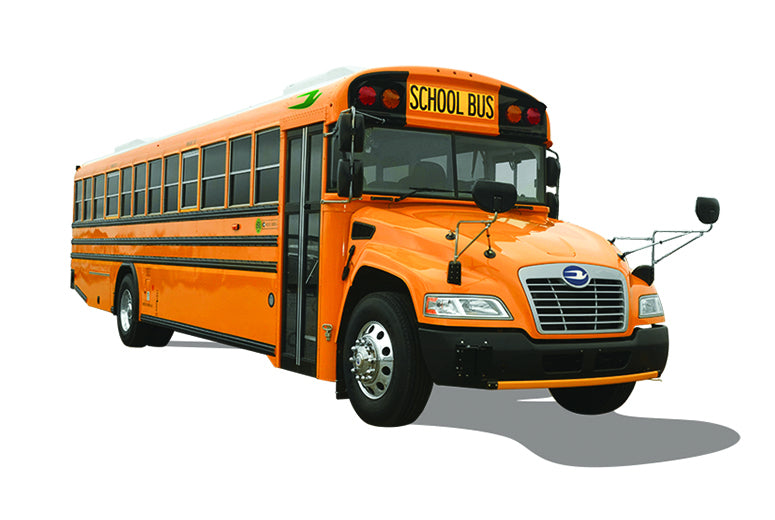

Vision CNG - School Bus

Name: Vision CNG - School Bus
Brand: Blue Bird
Availability: InStock

With over 25 years of CNG experience, Blue Bird is familiar with not only your infrastructure needs, but also what it takes to make a successful CNG product- and with partners like Ford and ROUSH CleanTech, you can rest assured the Vision CNG bus is an excellent, green choice for your fleet.

Request a Quote

Capacity

Up to 77

Exterior Width

96"

Interior Width

90 3/4"

Aisle Width

Varies by floor plan

Skirt Length

16 1/4", 19 3/4", 25 3/4"

Alternator

210, 240, 270, and 320 amps with 12 volts

Brakes

4-channel antilock brake system; hydraulic disc, air drum and air disc brakes available

Wheelbase

217"/252"/273"/280"

Overhang

Varies by body length

Fuel Capacity

Varies by tank size/body model

Rear Axle

Rear axle with 6.17 hypoid single reduction gears

Tire Size

11R-22.5(G) all - position radials

Entrance Door

27" wide x 78" high/double door

Rear Door

37" wide x 52" high

Transmission

FordÂ® 6R140 - 6 speed automatic

Engine

FordÂ® three-valve 6.8L V10 CNG fuel system, 269 hp

Interior Height

77"

Overall Height

122" - 128"

Suspension

Optional Soft ride front leaf spring suspension (ratings vary by capacity, Two-stage steel leaf rear spring suspension system (Rating varies by capacity), Air suspension is standard

Steering

Tilting & telescoping steering column

Front Axle

Ratings vary by capacity

Battery Capacity

2 group 31 batteries, each battery rated at 12v, 700CCA & 185 minutes of reserve capacity

Wheel Cut

50 Degrees

GVWR

Up to 33,000 lbs.
