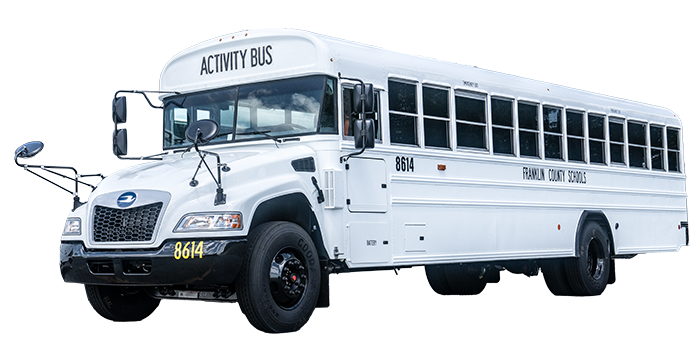

Vision Diesel - Multi Function School Activity Bus

Name: Vision Diesel - Multi Function School Activity Bus
Brand: Blue Bird
Availability: InStock

Blue Bird’s wide range of bus options ensures that customers tailor their transportation solutions to their specific needs - whether those needs are transporting a church congregation or shuttling workers to and from a job site.

Blue Bird offers a full line of activity bus and Multi-Function School Activity Bus (MFSAB) products, including the All American Forward Engine, the All American Rear Engine, the Blue Bird Vision, and the Micro Bird. With varying vehicle sizes, capacities, fuel choices, and engine types, Blue Bird’s wide range of bus options ensures that customers tailor their transportation solutions to their specific needs - whether those needs are transporting a church congregation or shuttling workers to and from a job site. From our best-in-class fuel economy to our best-in-class driver visibility and serviceability, Blue Bird’s industry-leading features establish the benchmark for parents, directors, drivers and service technicians alike.

Request a Quote

Capacity

Up to 83

Exterior Width

96"

Interior Width

90 3/4"

Aisle Width

Varies by floor plan

Skirt Length

16 1/4", 19 3/4", 25 3/4"

Alternator

210, 240, 270 and 320 amps with 12 volts

Brakes

4-wheel hydraulic disc brakes, 4-channel antilock brake system; Hydraulic disc, air drum and air disc brakes available

Wheelbase

169″/189″/217″/238″/252″/273″/280″

Overhang

Front: 45″ with standard steel bumper; Rear: varies by body length/wheelbase

Fuel Capacity

Standard 60-gallon, optional 100-gallon located between frame rails in rear overhang; 45-gallon for 169″ wheelbase

Rear Axle

Rear axle with hypoid, single reduction gears with broad range of ratios available to optimize powertrain performance (Rating varies by capacity)

Tire Size

11R22.5 (G) all-position radials

Entrance Door

27″ Wide x 78″ High/ Double electric outward opening (optional), Air (optional), Manual door (standard)

Rear Door

37" wide x 52" high

Transmission

Allison 2500 PTS – 5 & 6 speed automatic; Allison 3000 PTS – 5 & 6 speed automatic

Engine

Cummins B6.7 200-300 hp

Interior Height

77"

Overall Height

122″ – 128″ excluding roof options

Suspension

Soft ride front leaf spring suspension (Rating varies by capacity); Two-stage steel leaf rear spring suspension system (Rating varies by capacity); Air suspension available

Steering

Tilting & telescoping steering column

Front Axle

Ratings vary by capacity

Battery Capacity

2 group 31 batteries, each battery rated at 12v, 700CCA & 185 minutes of reserve capacity

Wheel Cut

50 Degrees

GVWR

Up to 33,000 lbs.
